Create an automation

• 1: Create a Slack automation
• 2: Create a webhook automation

1 - Create a Slack automation

This page shows how to create a Slack automation. To create a webhook automation, refer to Create a webhook automation instead.

At a high level, to create a Slack automation, you take these steps:

1. Add a Slack integration, which authorizes W&B to post to the Slack instance and channel.
2. Create the Slack automation, which defines the event to watch for and the channel to post to.

Connect to Slack

A team admin can add a Slack destination to the team.

1. Log in to W&B and go to Team Settings page.

2. In the Slack channel integrations section, click Connect Slack to add a new Slack instance. To add a channel for an existing Slack instance, click New integration.

   If necessary, sign in to Slack in your browser. When prompted, grant W&B permission to post to the Slack channel you select. Read the page, then click Search for a channel and begin typing the channel name. Select the channel from the list, then click Allow.

3. In Slack, go to the channel you selected. If you see a post like [Your Slack handle] added an integration to this channel: Weights & Biases, the integration is configured correctly.

Now you can create an automation that notifies the Slack channel you configured.

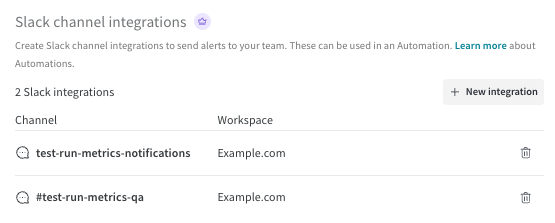

View and manage Slack connections

A team admin can view and manage the team’s Slack instances and channels.

1. Log in to W&B and go to Team Settings.
2. View each Slack destination in the Slack channel integrations section.
3. Delete a destination by clicking its trash icon.

Create an automation

After you connect your W&B team to Slack, select Registry or Project, then follow these steps to create an automation that notifies the Slack channel.

• Registry
• Project

View and manage automations

• Registry
• Project

2 - Create a webhook automation

This page shows how to create a webhook automation. To create a Slack automation, refer to Create a Slack automation instead.

At a high level, to create a webhook automation, you take these steps:

1. If necessary, create a W&B secret for each sensitive string required by the automation, such as an access token, password, or SSH key. Secrets are defined in your team settings.
2. Create a webhook to define the endpoint and authorization details and grant the integration access to any secrets it needs.
3. Create the automation to define the event to watch for and the payload W&B will send. Grant the automation access to any secrets it needs for the payload.

Create a webhook

A team admin can add a webhook for the team.

1. Log in to W&B and go to Team Settings page.

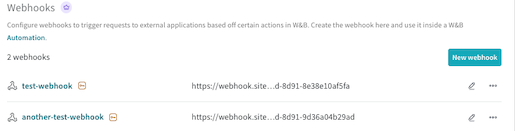

2. In the Webhooks section, click New webhook.

3. Provide a name for the webhook.

4. Provide the endpoint URL for the webhook.

5. If the webhook requires a Bearer token, set Access token to the secret that contains it. When using the webhook automation, W&B sets the Authorization: Bearer HTTP header to the access token, and you can access the token in the ${ACCESS_TOKEN} payload variable.

6. If the webhook requires a password or other sensitive string in its payload, set Secret to the secret that contains it. When you configure the automation that uses the webhook, you can access the secret as a payload variable by prefixing its name with $.

   If the webhook’s access token is stored in a secret, you must also complete the next step to specify the secret as the access token.

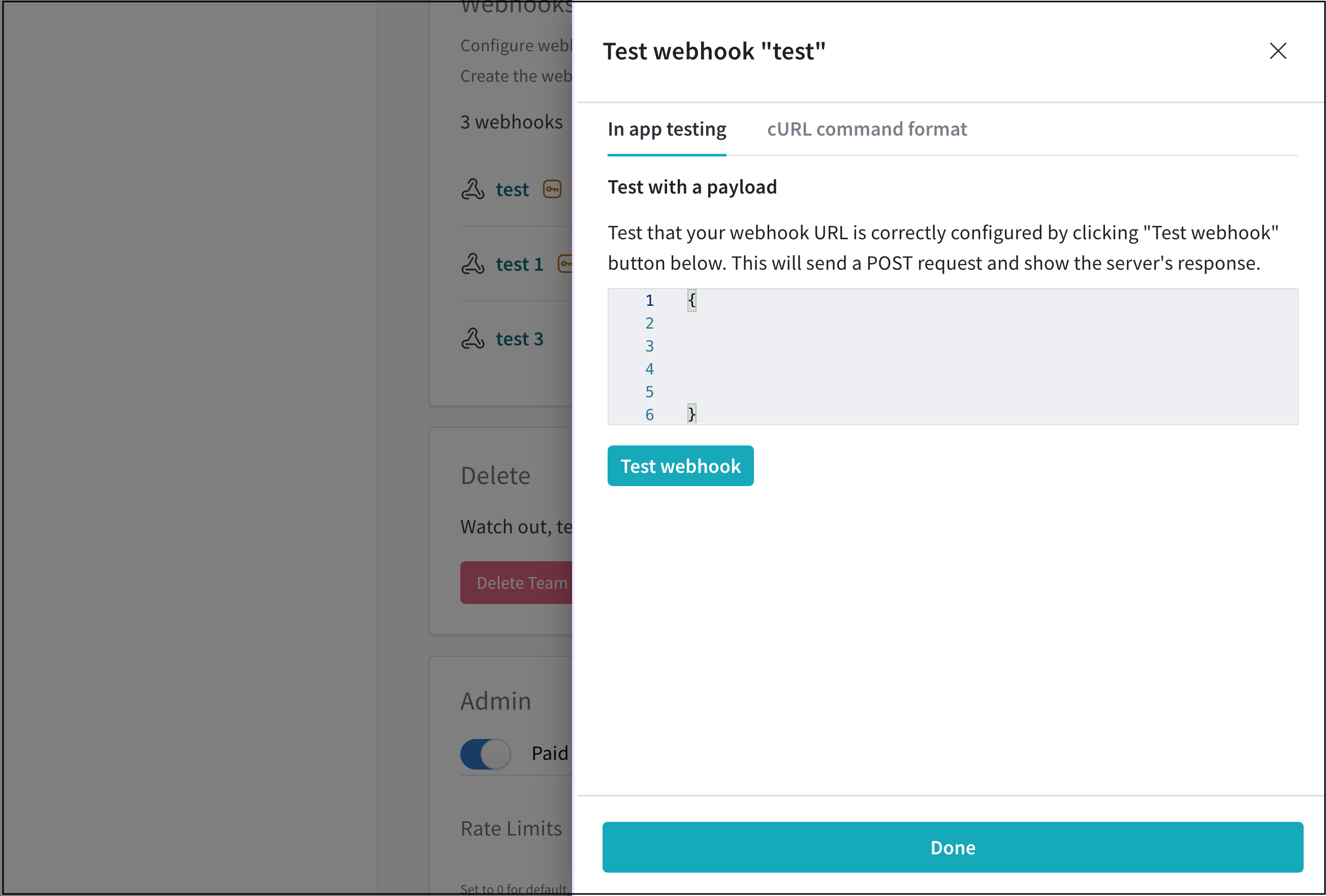

7. To verify that the W&B can connect and authenticate to the endpoint:

   1. Optionally, provide a payload to test. To refer to a secret the webhook has access to in the payload, prefix its name with $. This payload is only used for testing and is not saved. You configure an automation’s payload when you create the automation. See Troubleshoot your webhook to view where the secret and access token are specified in the POST request.
   2. Click Test. W&B attempts to connect to the webhook’s endpoint using the credentials you configured. If you provided a payload, W&B sends it.

   If the test does not succeed, verify the webhook’s configuration and try again. If necessary, refer to Troubleshoot your webhook.

Now you can create an automation that uses the webhook.

Create an automation

After you configure a webhook, select Registry or Project, then follow these steps to create an automation that triggers the webhook.

• Registry
• Project

View and manage automations

• Registry
• Project

Payload reference

Use these sections to construct your webhoook’s payload. For details about testing your webhook and its payload, refer to Troubleshoot your webhook.

Payload variables

This section describes the variables you can use to construct your webhook’s payload.

Payload examples

This section includes examples of webhook payloads for some common use cases. The examples demonstrate how to use payload variables.

• GitHub repository dispatch
• Microsoft Teams notification
• Slack notifications

on:
repository_dispatch:
  types: BUILD_AND_DEPLOY

{
  "event_type": "BUILD_AND_DEPLOY",
  "client_payload":
  {
    "event_author": "${event_author}",
    "artifact_version": "${artifact_version}",
    "artifact_version_string": "${artifact_version_string}",
    "artifact_collection_name": "${artifact_collection_name}",
    "project_name": "${project_name}",
    "entity_name": "${entity_name}"
    }
}

${event_type} --> "LINK_ARTIFACT" or "ADD_ARTIFACT_ALIAS"
${event_author} --> "<wandb-user>"
${artifact_version} --> "wandb-artifact://_id/QXJ0aWZhY3Q6NTE3ODg5ODg3""
${artifact_version_string} --> "<entity>/model-registry/<registered_model_name>:<alias>"
${artifact_collection_name} --> "<registered_model_name>"
${project_name} --> "model-registry"
${entity_name} --> "<entity>"

{
"@type": "MessageCard",
"@context": "http://schema.org/extensions",
"summary": "New Notification",
"sections": [
  {
    "activityTitle": "Notification from WANDB",
    "text": "This is an example message sent via Teams webhook.",
    "facts": [
      {
        "name": "Author",
        "value": "${event_author}"
      },
      {
        "name": "Event Type",
        "value": "${event_type}"
      }
    ],
    "markdown": true
  }
]
}

{
    "text": "New alert from WANDB!",
"blocks": [
    {
            "type": "section",
        "text": {
            "type": "mrkdwn",
            "text": "Registry event: ${event_type}"
        }
    },
        {
            "type":"section",
            "text": {
            "type": "mrkdwn",
            "text": "New version: ${artifact_version_string}"
        }
        },
        {
        "type": "divider"
    },
        {
            "type": "section",
        "text": {
            "type": "mrkdwn",
            "text": "Author: ${event_author}"
        }
        }
    ]
}

Troubleshoot your webhook

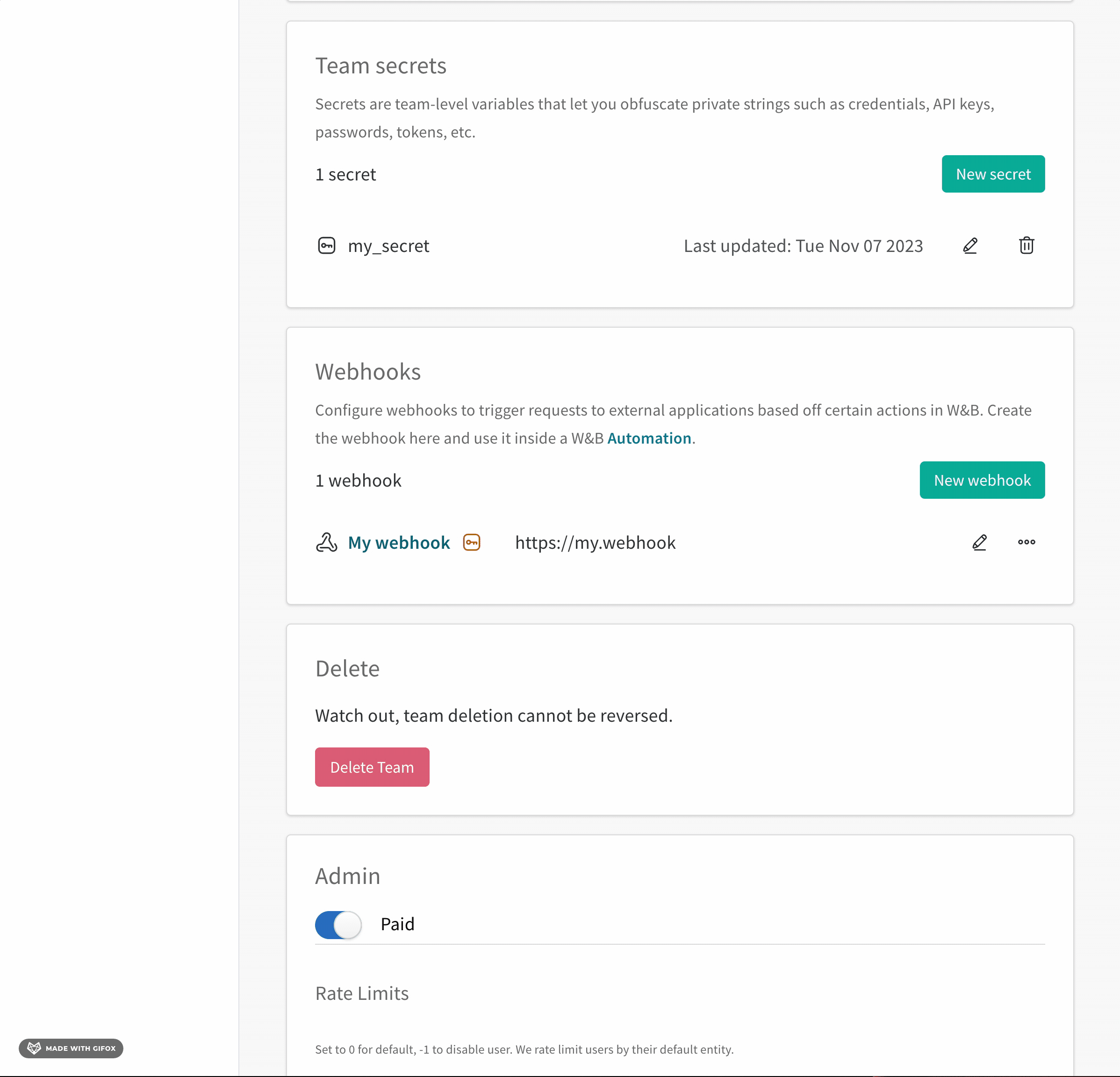

Interactively troubleshoot your webhook with the W&B App UI or programmatically with a Bash script. You can troubleshoot a webhook when you create a new webhook or edit an existing webhook.

• W&B App UI
• Bash script
